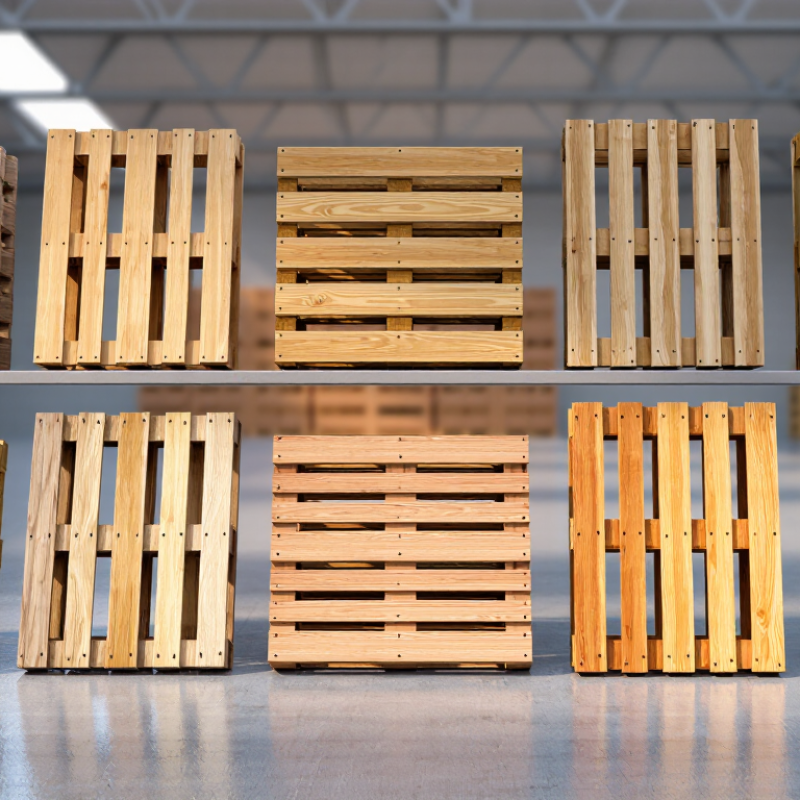

What Are the Top 10 Types of Wooden Pallets?
Choosing among wooden pallets can feel simple until the loads, forklifts, and warehouse floors enter the picture. A pallet that works well for stacked cartons may fail under uneven machinery or repeated outdoor use. The details matter: board thickness, entry openings, nail placement, and moisture can change how a pallet performs.
Pallet researcher Marshall S. White has studied pallet design and performance. A practical summary of his field’s central lesson—not a verbatim quotation—is: “Choose a pallet for the job it must do, not just for its price.” That distinction guides this overview. It looks at ten common types, including stringer, block, hardwood, softwood, reusable, one-way, heat-treated, and molded pallets. Some categories overlap. A pallet can be both reusable and heat-treated, for example. The labels are not always neat.
Performance depends on the whole handling system. Consider a loaded pallet turning through a narrow aisle, resting on rack beams, or waiting in a damp loading area. Each situation favors different construction and materials. A lower purchase price may also bring more repairs or shorter service life. Still, there is no single best choice. This guide compares the main options by structure, durability, handling, and typical use, while noting where real-world conditions can change the answer. A quick reminder: measure the load, check the handling equipment, and inspect the pallet itself.
Key Features Used to Classify Wooden Pallets
Wooden pallets are best classified by measurable features, not labels alone. Start with footprint: ISO 6780:2003 specifies six principal pallet dimensions for intercontinental materials handling, including 1200 × 800 mm and 1200 × 1000 mm formats. A few centimeters matter. They can affect rack fit, conveyor transfer, and trailer loading.
Next, inspect construction. Stringer pallets use longitudinal boards; block pallets place blocks beneath deck boards and often allow four-way entry. Deck-board spacing, top and bottom deck count, fastener pattern, and fork-entry direction distinguish designs further. A close visual check helps, but hidden repairs can change strength. Not always obvious.
Load capacity needs separate ratings for static, dynamic, and racked use; one figure cannot safely cover all three. The USDA Forest Products Laboratory’s Wood Handbook (FPL-GTR-282, 2021) explains how moisture content affects wood’s mechanical behavior and dimensional stability. Record species or grade, moisture condition, and treatment requirements alongside load data. Species alone does not guarantee strength. A damp pallet may weigh more and behave differently under load.
Stringer and Block Pallets: The Two Main Structural Types
Stringer and block pallets are the two main structural types, but their support systems differ. A stringer pallet uses long boards between its top and bottom decks. Forks usually enter from two sides; notched stringers can allow limited access from the other sides. A block pallet uses solid blocks beneath the deck, often allowing four-way entry. The actual access depends on its bottom-board layout. That detail matters in a crowded warehouse aisle.
The 2016 U.S. Wood Pallet and Container Industry report by Virginia Tech and the National Wooden Pallet & Container Association estimated 849 million new and repaired wooden pallets were produced in the United States that year. That scale shows how practical small design choices can be. A stringer pallet may suit simple racking and straightforward handling; a block pallet can help where forklifts approach from several directions. Neither structure guarantees a particular load capacity. Wood species, fasteners, deck-board spacing, moisture, and damage all affect performance. A label alone can mislead. Inspect the pallet’s underside, check for cracked boards, and match its rated capacity to the load and handling equipment. The report measures industry volume, not the share or performance of each structural type.
Two-Way and Four-Way Entry Pallets: Forklift Access Options
Two-way and four-way entry describe where forklift forks can enter a wooden pallet. They do not indicate its safe load capacity. A two-way pallet usually accepts forks from two opposite sides. It can work well on a fixed production line, where pallets follow a planned route. Stringers may block access from the other sides. Keep that in mind in tight aisles. Forks need a clear approach; forcing them beneath a blocked edge can damage the pallet. Not always obvious at a glance.
Four-way entry pallets allow access from all four sides. Notches in stringers or block-style construction may create that access. This flexibility helps when storage positions change or forklifts approach from different directions. It can reduce awkward repositioning, though “four-way” does not mean every truck or fork fits equally well. Check fork spacing, deck clearance, pallet dimensions, and rated capacity against the equipment in use. An empty-pallet test can reveal interference. Loaded handling should also be checked under controlled conditions. The drawing is not the floor. Wood can split around entry notches after impacts or repeated wet-dry cycles. Inspect notches and bottom boards regularly, especially in busy staging areas. A small splinter can catch a fork.
What Are the Top 10 Types of Wooden Pallets? — Two-Way and Four-Way Entry Pallets: Forklift Access Options
Two-way pallets allow forklift entry from two opposite sides; four-way pallets allow entry from all four sides. The chart compares the number of accessible sides, not pallet rankings or market-share estimates.
Single-Face, Double-Face, and Reversible Pallets
What Are the Top 10 Types of Wooden Pallets?
Single-Face, Double-Face, and Reversible Pallets
Single-face pallets have a load-bearing deck on one side, supported by blocks or stringers beneath. Their open underside can make handling simple, but they are not designed for loads placed on the bottom. Picture cartons resting on closely spaced boards, with the forklift entering beneath them. Check the actual entry openings before choosing one; “single-face” does not guarantee easy access from every direction.
Double-face pallets have deck boards on both the top and bottom. The lower boards add support and can help distribute impact during handling. But double-face does not always mean reversible. A reversible pallet is built so either face can serve as the loading surface, which can be useful when workers need flexibility. It may also add weight and material. That matters. Virginia Tech’s 2016 pallet-industry study estimated roughly 1.8 billion pallets in use in the United States, underscoring the scale of pallet handling and reuse. For a specific operation, compare load weight, rack support, forklift entry, and return trips—not just the pallet name.
One detail is easy to overlook: deck-board spacing. A narrow gap may better support small cartons, while wider gaps reduce wood use but can leave fragile packaging less supported. I would verify the pallet’s rated capacity and inspect its joints under real working conditions. A neat specification sheet cannot reveal every weak board.
Winged, Nestable, and Custom Wooden Pallets
Winged wooden pallets extend deck boards beyond the stringers, creating a lip for straps or added load support. Confirm wing length against forklift openings, rack beams, and neighboring loads; even a small overhang can snag. Measure twice. NWPCA and Virginia Tech’s 2016 Pallet Report estimated that 849 million pallets were produced in the United States that year. That figure covers all pallet types, not winged designs alone, but it shows the scale of pallet use.
True nesting is uncommon in conventional wooden pallets, so check a proposed design with a physical sample. Tapered or knock-down components may reduce return-trip volume, but they can add assembly time and loose parts. Test the stack. Custom pallets suit awkward equipment, uneven footprints, or loads with fragile edges. Give the designer the load weight, center of gravity, fork-entry direction, and expected moisture exposure. A practical trial should include corner impacts and a full-load lift, not just a visual fit check. Warehouse handling is rarely as tidy as a drawing.
